Easy DIY Conduit Curtain Rod
These DIY curtain rods are easy to make with some conduit, affordable, and so cute!
One of my favorite parts of decorating any room is deciding on the curtains. Windows are definitely one of the most important architectural features in a house to me (the bigger the better!) and I love for my windows to look pretty.
When we were house shopping, one thing that really drew me to this house is the giant (giant) windows throughout it. Downstairs, the windows are practically floor to ceiling and wall-to-wall in the living and dining room!

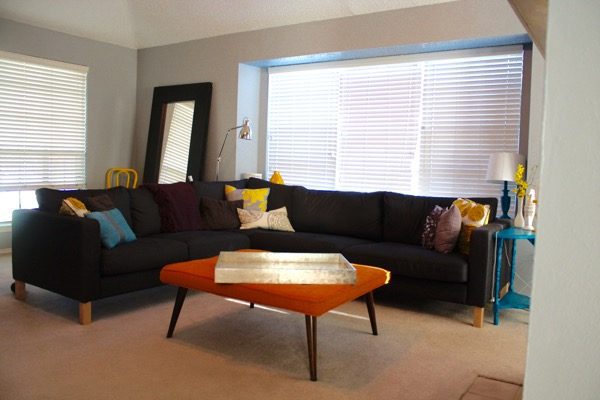

These windows have the potential to be fabulous, but they aren’t doing us any favors when they’re naked.
However, there was one major problem – do you have any idea how expensive it is to purchase curtain rods that are 12 feet long? I’ll tell you right now – it’s more than I’m willing to pay! So naturally, Corey and I did what we always do in these situations: we decided to make our own.
Thankfully, our creative muscles are strong and we came up with something that we think is pretty perfect…for a whopping $30 for both windows!
UPDATE: We also made some DIY copper curtain rods – you can click here to see them!
This post contains affiliate links. Click here to read my full disclosure policy.
Ready to hear how we did it?
Easy DIY Conduit Curtain Rod
- 3/4″ Electrical conduit
- You’ll need the length you want your curtain rods to be
- Two-hole straps
- Amount depends on how long your rods are. We used 3 per rod.
- Set screw coupling
- Only necessary if your rod will be longer than the standard conduit length (10 feet).
- Knock-Out Seals (2 per rod)
- Pipe cutter
- Curtain rings
- We used these.
Step one: gather your supplies
After lots and lots of browsing at the hardware store, we ended up deciding to go with electrical conduit to make our curtain rods – it’s super cheap, comes in a variety of thicknesses, and has a nice, industrial look to it so we wouldn’t even have to do anything to the finish (although, you could easily paint them!).
We also got a ton of random hardware from the electrical aisle that looked like it could be used for a curtain rod – things like two-hole straps, couplings, and knock out seals.
No idea what those are? Yeah, me neither, but we’ll get to that in a minute.
We decided to purchase 3/4″ conduit for no other reason than that it was the one we liked best. They had 1/2″ and 1″ as well, so you could really go with whatever size you prefer – just make sure all of the hardware matches your size and you’re good to go.
Step two: Cut conduit to size
After measuring the windows (plus adding on some length on either end so we could hang the curtains wider than the window, making it look even larger), we decided that we wanted 12 feet of curtain rod for the window behind our couch, and 8 feet for the front window.
Of course, conduit only comes in 10 feet lengths, so that meant we were going to have to do some cutting. We wanted the rods to be identical and it just so happened that our lengths worked out perfectly for us to just buy two lengths of conduit have a seam in the middle of each – we cut each one right at six feet, so we ended up with two six foot pieces and two four foot pieces.
Lowe’s couldn’t cut the conduit for us, but thankfully Corey just got a reciprocating saw for Christmas that came with a metal-cutting blade! You could also just use a pipe cutter (which I linked above), but since Corey had the saw already, we were able to just purchase a super cheap hose clamp from the plumbing aisle to help keep the blade straight.

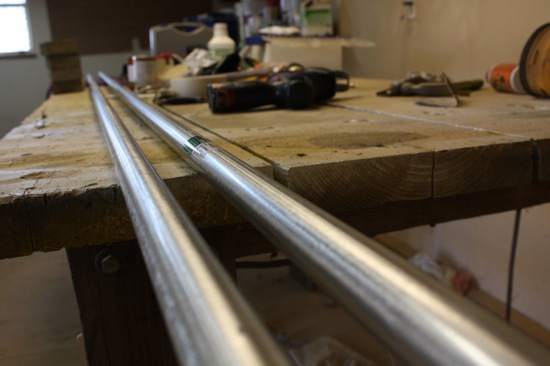

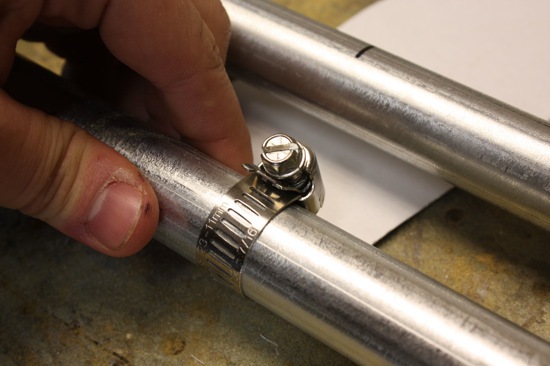

This is what the hose clamp looks like on the conduit – we just measured the conduit at six feet, marked it with a Sharpie, and put the clamp on before cutting:
And after cutting we had this:
Step Three: Connect your conduit

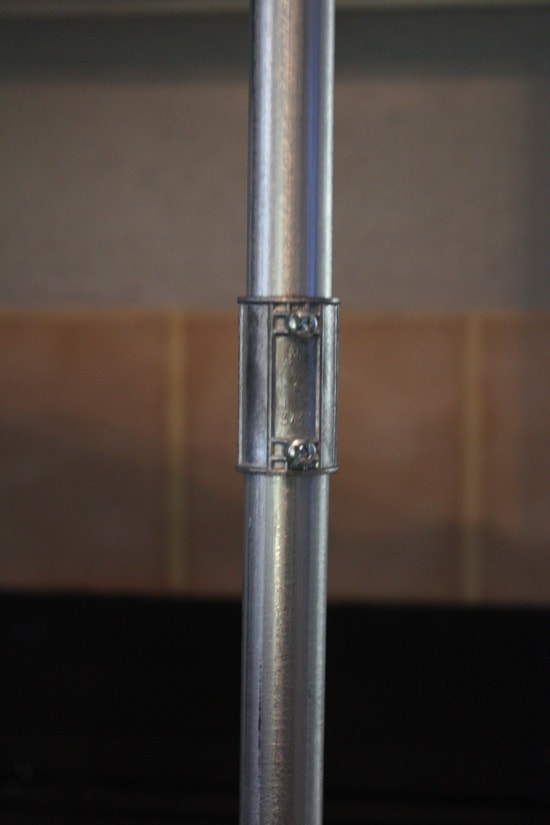

So now we had four pieces of conduit that needed to be pieced together to make a two actual curtain rods. This is where the coupling comes in. Here’s what it looks like:
It’s insanely simple to put together. Just put one length of conduit in one end and tighten the screw, then do the same on the other side. And then, you have a DIY conduit curtain rod (almost)!
step four: Add knock out seals

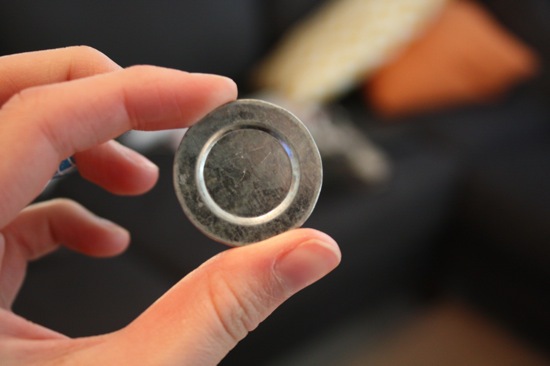

At this point, the only thing missing to make this look like a real curtain rod is finished ends. Because conduit is used to run electrical wires, it’s hollow in the middle and has holes at the ends – we wanted it to look a little more finished. We talked about actually getting finials for the ends, but we couldn’t find any that we liked (or that were cheap enough for our “keep the price as low as possible” budget). So, we found some caps for the end (they’re technically called knock out seals) and plopped them in.
The only weird thing to keep in mind about the knock out seals is that you have to get a size smaller than your conduit in order for them to fit. I’m not an electrician so I can’t explain why (and I’m sure these things aren’t really even intended for what we did with them), but all I know is we had to buy 1/2″ knock out seals to fit into our 3/4″ conduit.
We’re really glad we went with these rather than an actual finial – you can barely even see them once the curtain rod is hung – it just looks nice and finished. And extremely simple, which is exactly what we were going for.
step five: Hang your new DIY curtain rods!

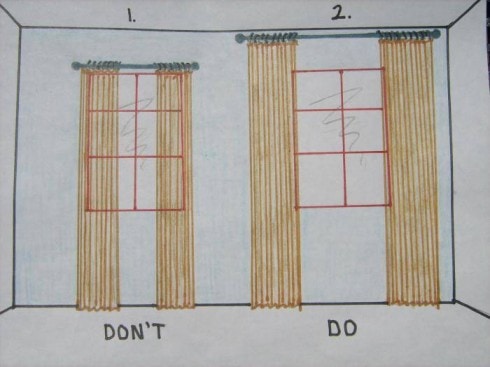

At this point, we were finally ready to hang them. We wanted to hang ’em high and wide to maximize the visual size of the windows. It sounds like a silly concept, but this little graphic is my favorite way to show how big of a difference it can make:
We measured and marked a spot for the rod based on how long our curtains + curtain hooks were (we’ll get to that in a minute) and I climbed up on the stepladder to hold it in place and make sure we were happy with the location and the way it looked.
Once we were sure we liked how it would look, it was time to hang it! One thing to keep in mind if you tackle something like this is to make sure you put your curtain rings on the rod before hanging it – the rod sits very close to the wall and can’t be taken out nearly as easily as traditional rods, so you’ll want to have the rings already on it and ready to go as soon as you’re done hanging it!

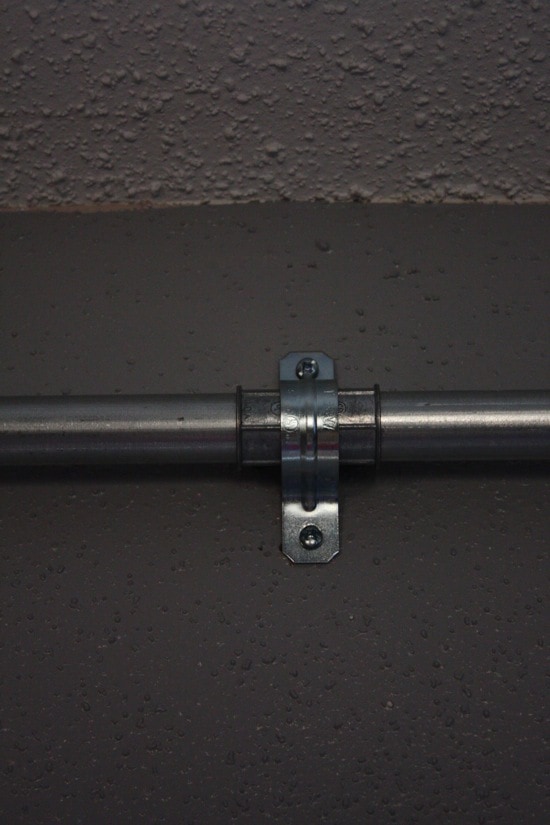

To get our curtain rod on the wall, we used two-hole straps. I have no idea what they actually are, but they look like this:
An important thing to remember here is that you’ll need two straps in the same size as your conduit, and one that is a size larger (so, for example, we used two 3/4″ and one 1″ strap on each curtain rod). The reason for this is that you’ll put a strap on either end and one in the middle – and you have the coupling in the middle of the rod, which adds some bulk to the middle section. Thus, you’ll need a bigger sized strap.
From here on out, it’s easy – measuring, screwing in the straps, and hanging the curtain rod!
We ended up using curtain rings with clips (similar to what we used, ours were on clearance at Ikea) to hang the actual curtains – I wasn’t about to actually sew grommets into the curtains, and this was the easiest (and cheapest) alternative.
We chose the fabric for our curtains several months ago, but seeing the full panels of fabric (rather than just a tiny swatch) in my house was beyond exciting – and a little terrifying. It’s an incredibly bold pattern and combination of colors, which is more than a little intimidating.
But I had spent several hours cutting, ironing, and sewing all that fabric into curtains, so I wasn’t about to back down at this point.

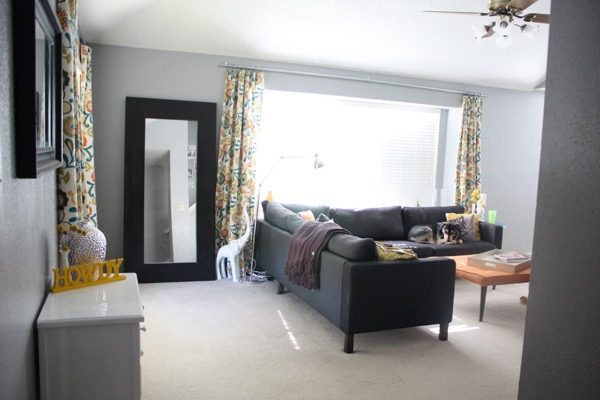

Thank goodness we fell in love once they were up on the wall.
We’re pretty blown away by how much they bring all of the colors in our living room together. The orange ottoman fits in beautifully with them, and they add some (MUCH needed) pattern and fun to the room.

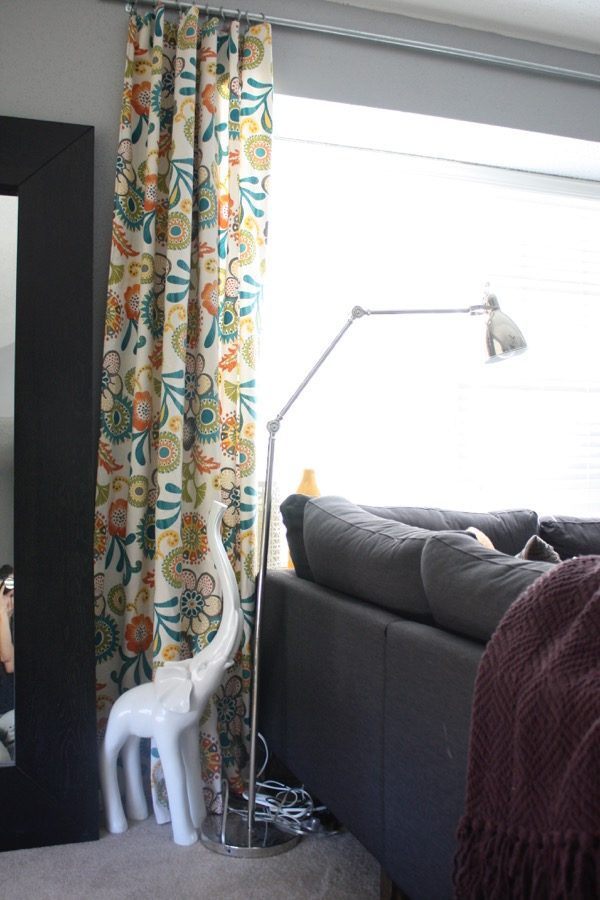

We’re also really happy with how the rods turned out – they have a little bit of an industrial feel, but mostly, they’re just incredibly simple and fade into the background, allowing the curtains to be the star of the show.
Yup, I think I like ’em. This project was quick, simple, cheap, and it turned out beautifully. My favorite kind of DIY project! I’m kind of inspired to make DIY conduit curtain rods for every room in the house now…too much?
So thrilled to find this post! I made a 13’6″ rod today out of 2 pieces of conduit. I saved over $70!
Thanks for the clear instructions. I just installed a double rod above a 13 foot window. The biggest expense was I used ready-made brackets (Home depot Martha Stewart $8.95 a pair and I needed 3). Haven’t put the finials on yet but I think we are going to find wooden dowels that fit in the ends and screw the finials into those.
Hi! I loved this post and it was sooo helpful! I just got home from Home Depot with all of my supplies! I actually made the same cuts as you because i also need a 12 and 8 foot rod. Quick question though…the knock out seals I bought are not fitting in the ends. Did the ones you bought have little edges on the back side of them that would keep them in place? I bought the 1/2 inch ones for my 3/4 inch conduit but they will not pop in. Just wondered if you had any toughts.
Yes – it definitely takes some work to get them in! We used pliers to bend back the little tabs on the back far enough that we could hammer it in. It’s just for looks, not really function, so it’s not a big deal if you have to bend the tabs a lot. Hope that helps!
Hi! Thanks for posting!! I’m looking to do the same project & stumbled upon this blog by way of google searching how to hang conduit as curtain rods. Since you’ve finished your project I’d love if you could answer a couple questions for me: 1) are the curtains functional on the rod? Meaning, can you move them freely? The closeness to the wall makes me nervous as I hope for mine to move smoothly. & 2) did you guys use hollow wall fasteners or studs to secure the conduit to the wall? I bought 1/2 inch conduit so it wouldn’t be as heavy but I do like the look of the 3/4 inch so just curious if you’d secured them beyond the screws into your drywall. Thanks for the help! Your work looks great!
Ours are not functional – we have blinds in addition to the curtains so we have no need to draw the curtains. However, I’ve seen several different solutions for this – some people have used L-brackets to hang them from the ceiling, and I’m pretty sure you can also find brackets for curtain rods separately if you look at Lowe’s. So, you could buy the hardware for the rod to hang it but use the conduit for the actual rod – does that make sense?
We used hollow wall fasteners for ours, because they weren’t going to be going into studs and we didn’t want to risk a giant mess if the curtains ended up being too heavy for just the drywall! 🙂 Hope that helps – and good luck!
